Our capious brand Bitumen sprayers, gives unbroken and specify quantity of bitumen or emulsion. These units can be supplied as a module to suit mounting on customer's truck chassis or can be supplied completely along with standard truck chassis.
The unit has a built in heating system with a high capacity imported burner to heat the bitumen to the required temperature. Various fuel options as well as burner options are offered on specific requests. The Insulated Storage tank clad with Industrial gauge steel sheets built strictly to Industrial codes for storing, handling and transportation of Bitumen. The cladding is optionally available in a wide range of options ranging from Galvanized, Aluminium or Stainless steel sheets.
A unique pressure cleaning system is a standard, which cleans the system after use and avoids blockages at the end of days work.

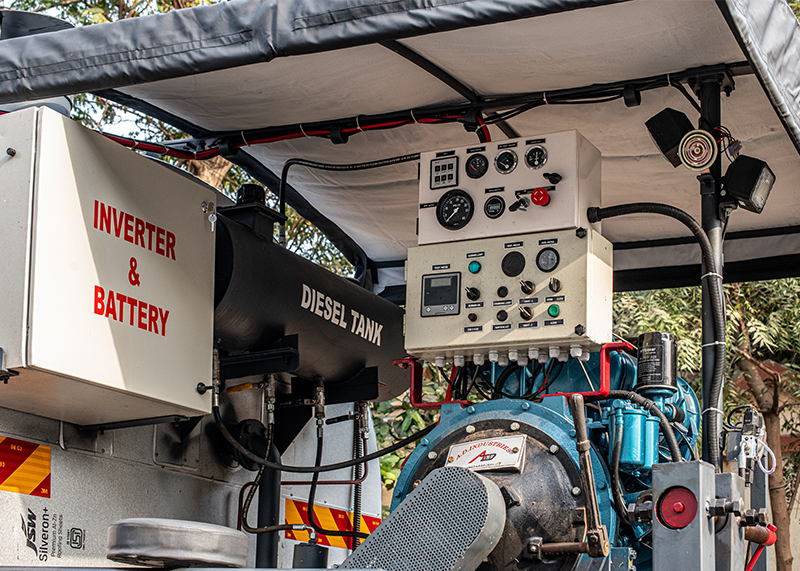

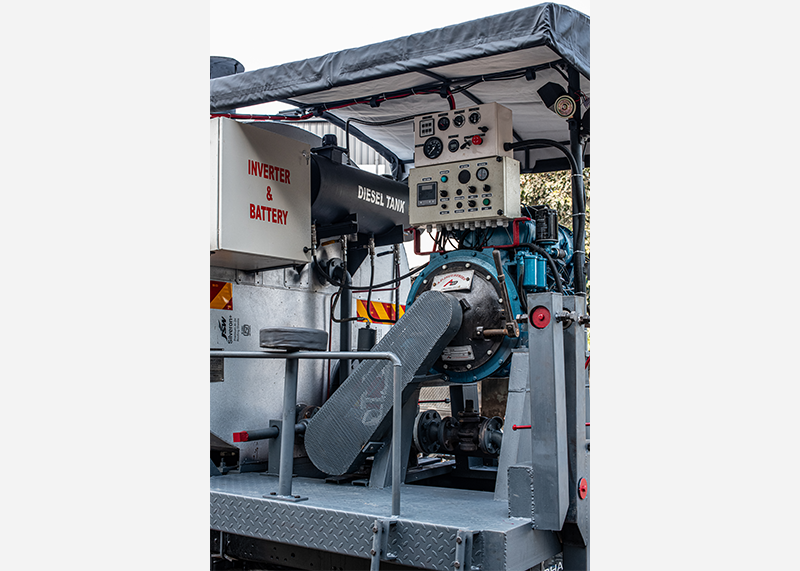

Each unit comes loaded with a speed detection & driver control system, air compressor, diesel engine, High capacity positive displacement internal gear type asphalt pump, remote control station, hand spraying attachment.

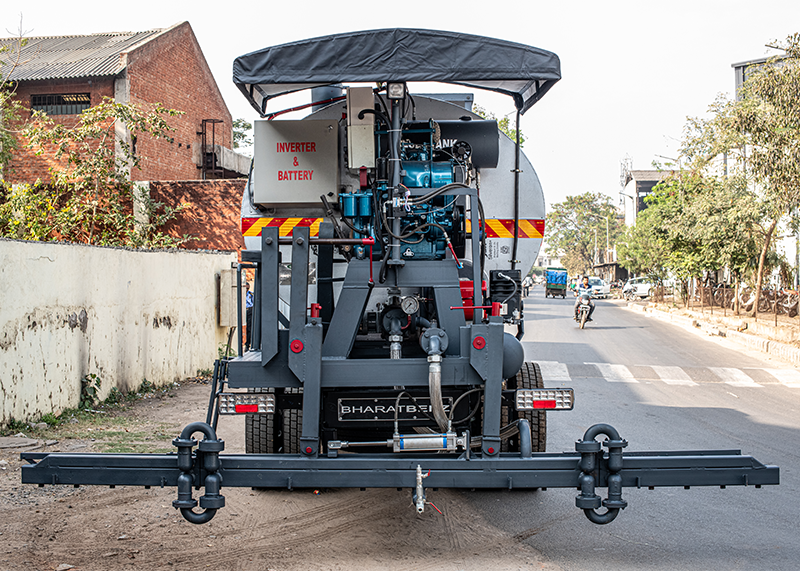

The horizontally folding spray bar is supplied with a basic width of 2.4 Meter extendable up to 4.2 Meter. The Fully circulating spray bar can deliver bitumen at pressures ranging from 0- 6 kg/sq m. All units are supplied with an inbuilt bitumen charging / loading system. The bar is pneumatically operated and easily adjustable.

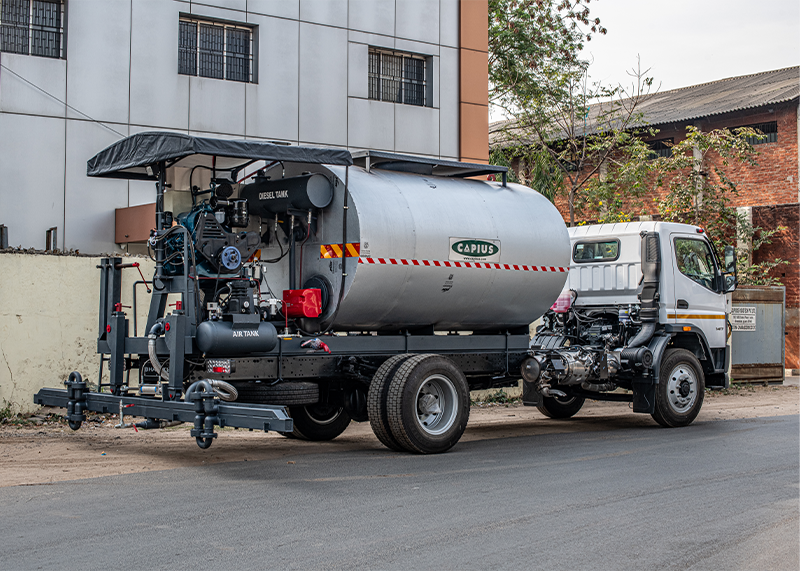

Complete range of Truck Mounted Bitumen Sprayer models with rated Capacities of 3000 to 12000 Litres.
Complete range of Trolley Mounted Bitumen / Emulsion Sprayer models with rated Capacities of 500 to 3000 Litres.
